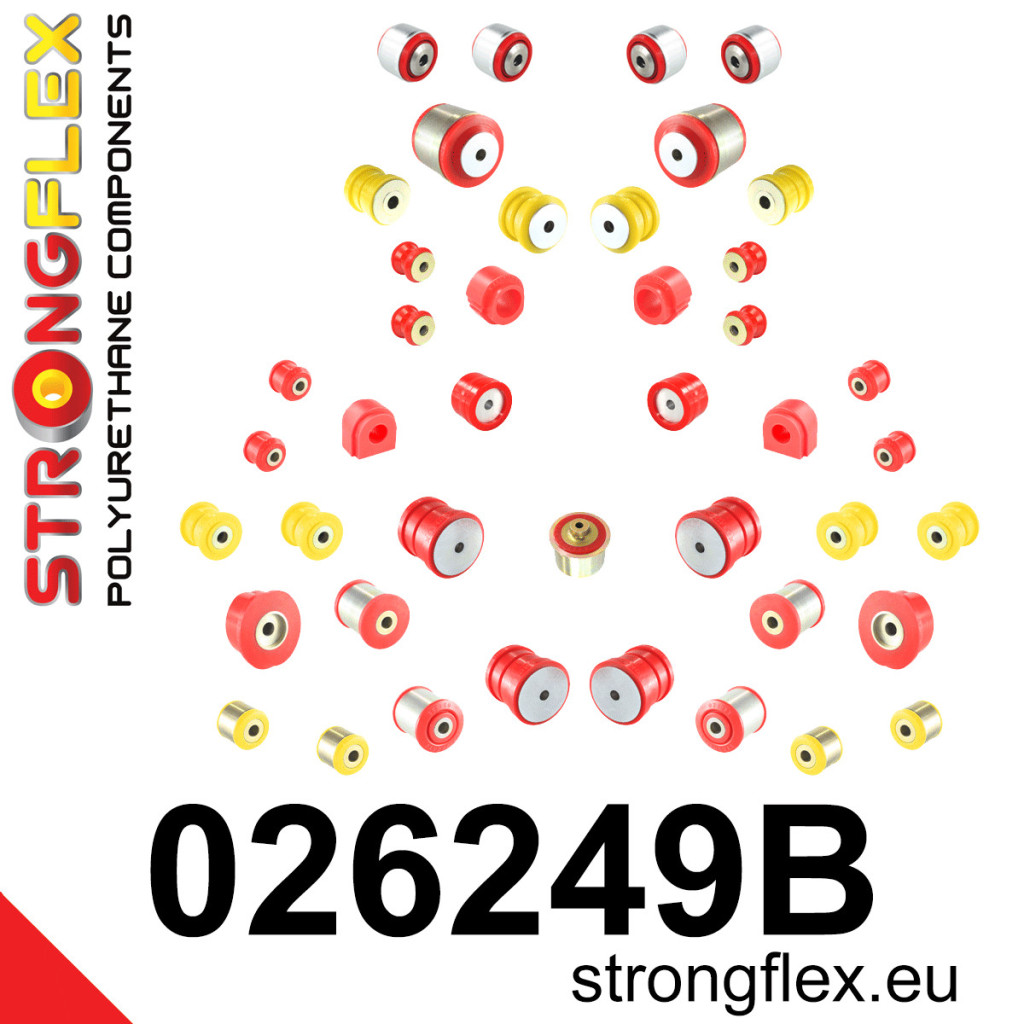

Reference: 026249B
Product name: Full suspension polyurethane bush kit
Fits to:
- Audi A4 B8 (07-15) Quattro / S4 / RS4
- Audi A5 8T (07-16) Quattro / S5 / RS5
Include:
- 4x 021259B: Front upper wishbone bush
- 2x 021972A: Front lower arm – inner bush SPORT
- 2x 021774A: Front lower arm outer bush SPORT
- 2x 021973B: Front lower wishbone rear bush 75mm
or - 2x 021974B: Front lower wishbone rear bush 65mm
- 2x 021285B: Front anti roll bar bush
- 4x 021923B: Front anti roll bar link bush
- 4x 021975A: Rear suspension – front arm bush SPORT
- 4x 021976A: Rear suspension – upper arm bush SPORT
- 2x 021977B: Rear lower arm – front bush
- 2x 021978B: Rear lower arm – rear bush
- 2x 021979B: Rear hub – front bush
- 2x 221666B: Rear anti roll bar bush
- 4x 021981B: Rear anti roll bar link bush
- 2x 021994B: Rear subframe - front bush
- 2x 021995B: Rear subframe - rear bush
- 1x 021996B: Rear differential - front bush
- 2x 021997B: Rear differential - rear bush
Diagrams:

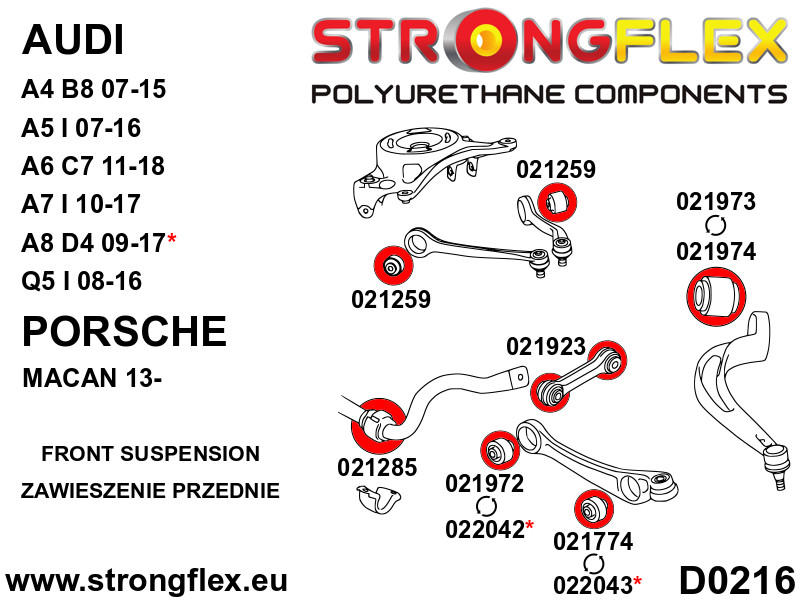

- D0216

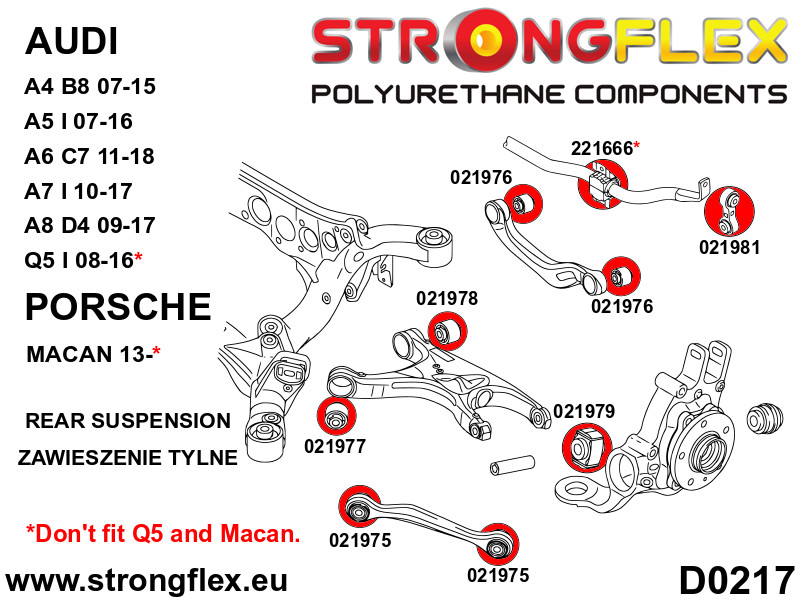

- D0217

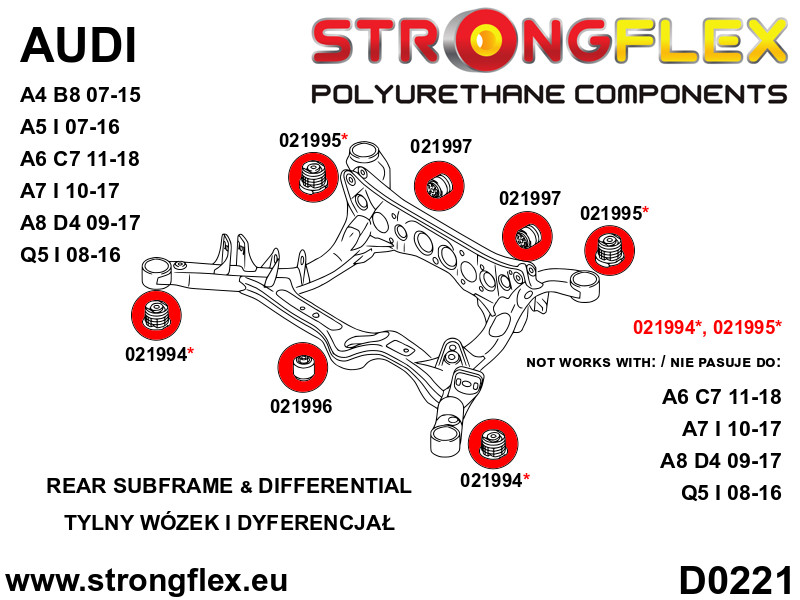

- D0221

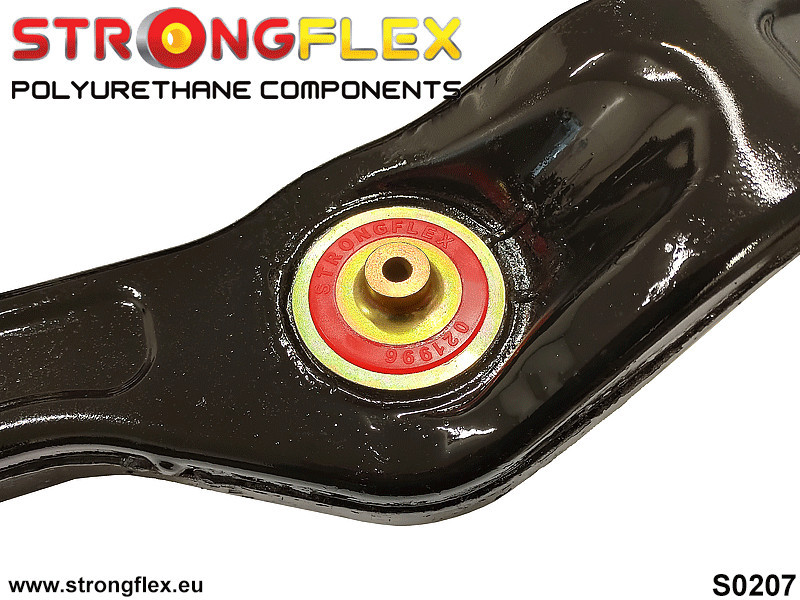

- S0207

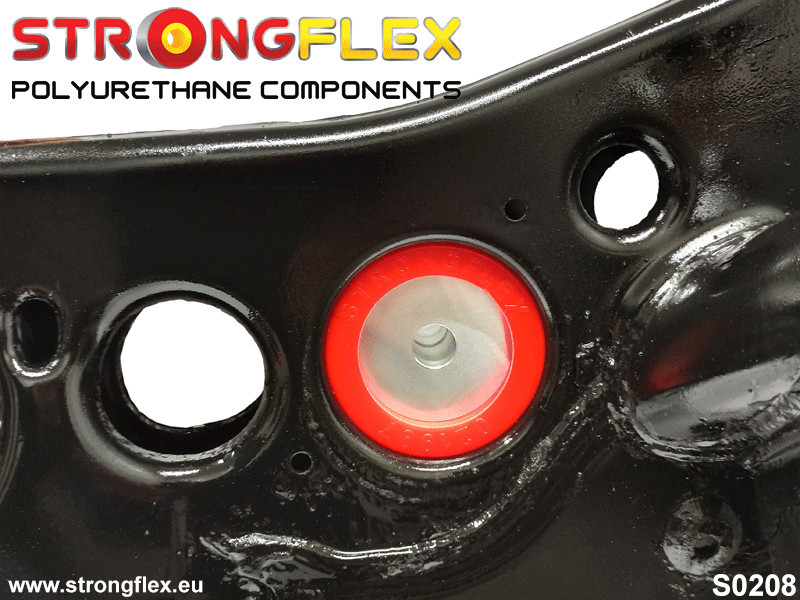

- S0208
Notes
- Front lower - rear wishbone bushing:
There are different bushings:
021974 - outer diameter 65mm
021973 - outer diameter 75mm
Before purchasing, check which bushings you have in your car.
Required/car: 1
Pcs / prod: 1
Pcs / KIT: 43
Hardness: 80Sha
Material: POLIURETHANE (PUR/PU)
To every product we add grease!
