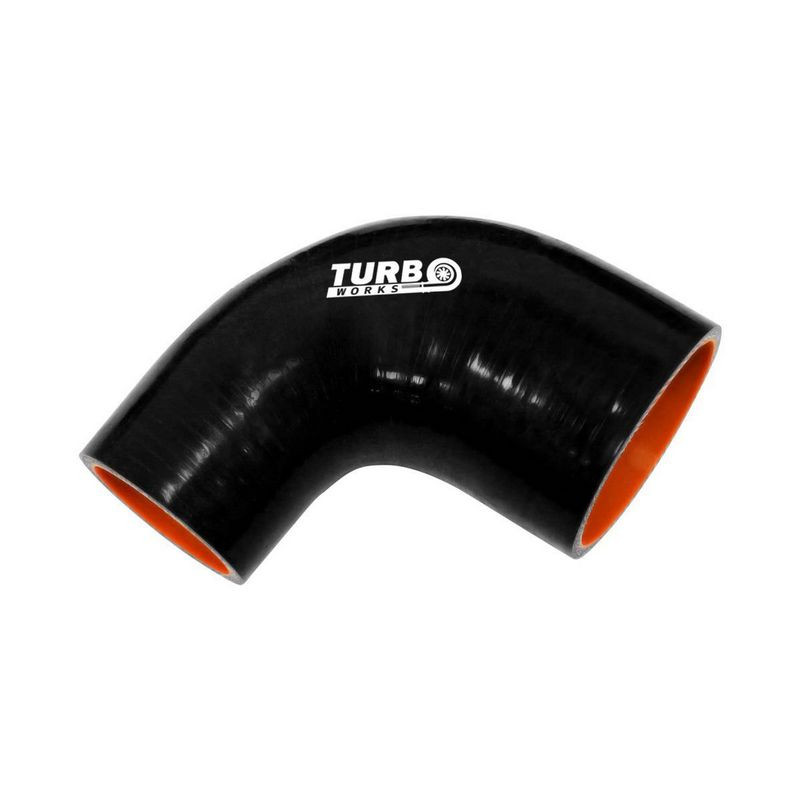

Key Features & Benefits – TurboWorks PRO Silicone Hose 90 Degree Reducer 25-38mm Black
The TurboWorks PRO Silicone Hose 90 Degree Reducer 25-38mm Black is a silicone hose reducer that combines a 90° bend with a diameter transition. Provide a clean fit in intake and cooling piping where you need to connect 25 mm and 38 mm ends while turning the routing through 90 degrees.
PRO construction uses 4-ply reinforcement with 5.5–6 mm wall thickness. It is tested up to 8 bar, rated for -70 to +260 °C, and the inner layer is resistant to oil vapors, grease and cooling fluids.
When is this useful?
Use it when space is tight and you need a 90° turn plus a 25 mm to 38 mm step, while keeping a consistent clamping surface for a sealed joint.
Technical specs
- Type: 90° reducer
- Connection diameter (D1): 25 mm
- Connection diameter (D2): 38 mm
- Length (L): 100 mm
- Construction: 4-ply
- Wall thickness: 5.5–6 mm
- Tested pressure: 8 bar
- Temperature range: -70 to +260 °C
- Color: Black
- Resistance: oil vapors, grease, cooling fluids
Selection & installation tips
- Diameter check: measure fitting outer diameters and match them to the 25 mm and 38 mm ends.
- Packaging: confirm the elbow turn and L=100 mm envelope fit your available clearance.
- Clamp sizing: choose clamps for each diameter and tighten evenly behind the bead for uniform sealing.
- Sealing surfaces: keep fittings clean and burr-free, and ensure hose ends are cut square for consistent contact.
- Stress-free routing: after tightening, check the reducer is not twisted and the joint is not under side load.
Before installation, verify your connection diameters and clearance, then match your measurements to the D1/D2 and L values listed above to confirm the reducer suits your routing.
