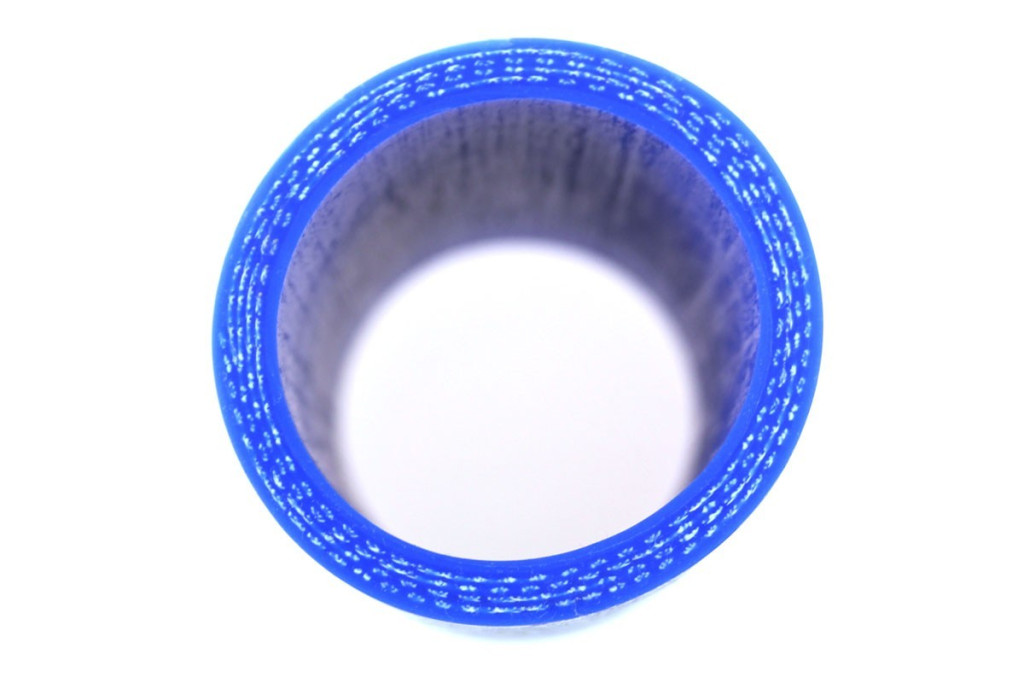

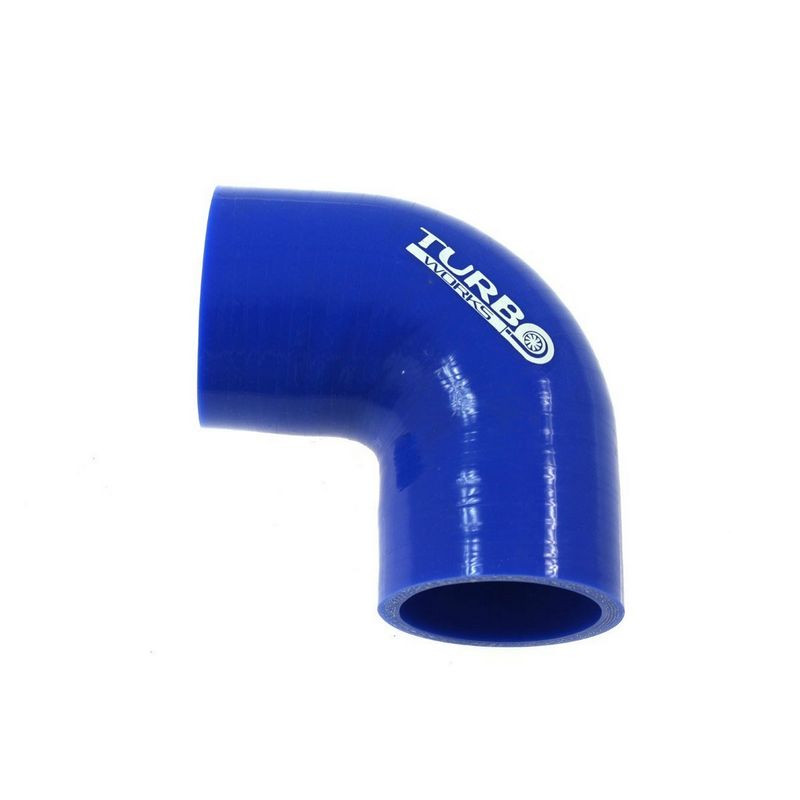

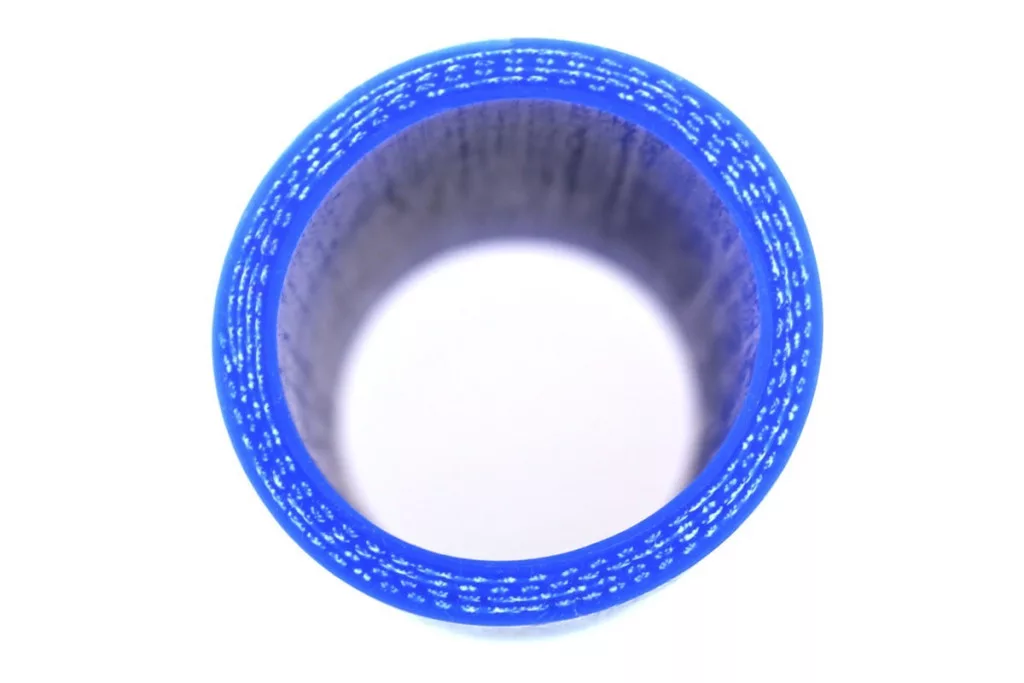

Key Features & Benefits – TurboWorks 90 degree silicone reducer hose 63–76 mm, blue
The TurboWorks 90 degree silicone reducer hose 63–76 mm, blue is a 90° silicone reducer elbow that combines a turn with a diameter step between 63 mm and 76 mm. It can be used in intake piping, cooling circuits, and intercooler setups where the two diameters and packaging match.
It features a 4-ply construction with a 6 mm wall and a stated -50 to +260 °C operating range. The material is described as resistant to coolant, grease, and oil vapour, and it is listed as tested up to 7 bar.
When is this useful?
It is useful when you need a tight 90° turn and a diameter change from 63 mm to 76 mm in one coupler, while keeping the joint stable under heat and pressure load.
Technical specs
- Brand: TurboWorks
- Type: 90 degree silicone reducer hose
- Colour: Blue
- D1: 63 mm
- D2: 76 mm
- Length (L): 100 mm
- Angle: 90°
- Construction: 4-ply
- Wall thickness: 6 mm
- Tested pressure: Up to 7 bar
- Temperature range: -50 to +260 °C
- Applications: Intake; cooling; intercooler
- Part number: CN-SL-101
Selection & installation tips
- Diameter direction: Confirm the 63 mm end (D1) and the 76 mm end (D2) are matched to the correct pipes, and clamp ranges fit both sides.
- Packaging: Check that the 100 mm length and the 90° bend clear nearby parts without kinking or tension.
- Clamping: Use correctly sized clamps and tighten evenly to avoid cutting the silicone and to prevent leaks.
- Routing protection: Keep clearance from sharp edges and hot spots, adding abrasion protection where contact risk exists.
- System check: After installation, inspect joints under load and confirm the coupler does not creep or rotate in boosted/coolant systems.
Before fitting, verify 63/76 mm connection sizes, 90° bend orientation, and clamp range, then match them to the dimensions and specs listed above.
