Key Features & Benefits – 90 degree silicone reducer hose 51–63 mm blue

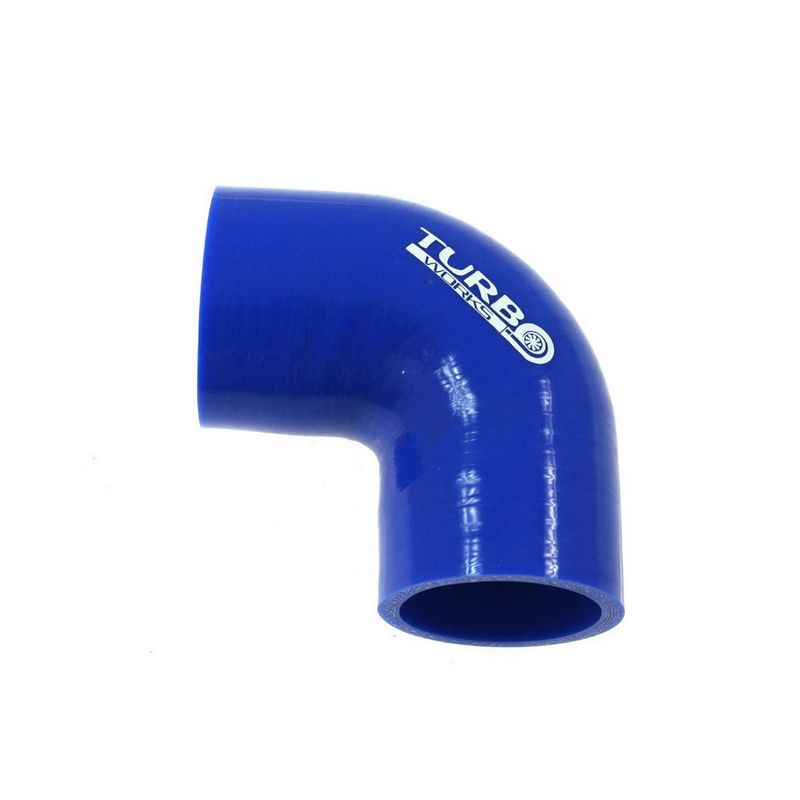

The 90 degree silicone reducer hose 51–63 mm blue is a TurboWorks reducer elbow designed to provide a 90° turn while stepping between 51 mm and 63 mm connections. It can be used in intake piping, cooling circuits, and intercooler setups where the two diameters and packaging match.

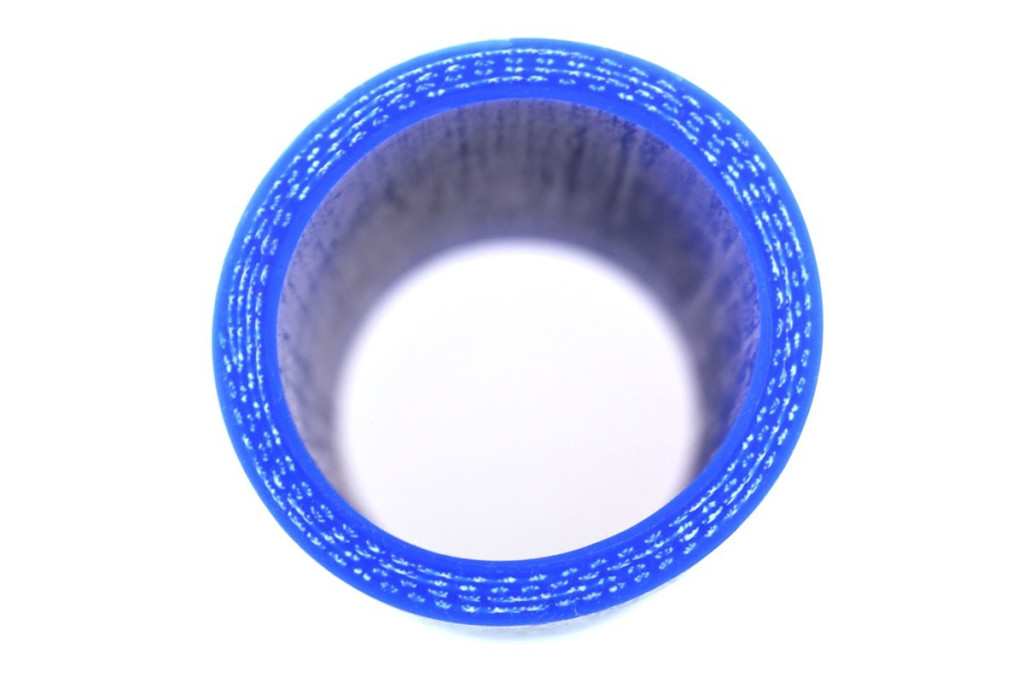

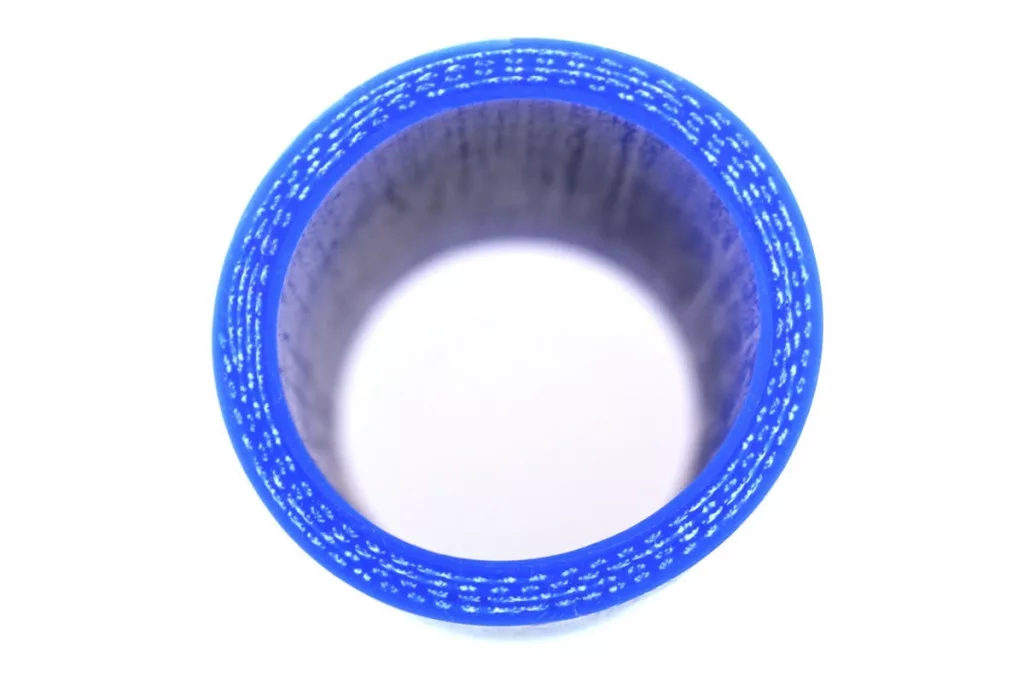

It features a 4-ply construction with a 6 mm wall and a stated -50 to +260 °C operating range. The material is described as resistant to coolant, grease, and oil vapour, and it is listed as tested up to 7 bar.
When is this useful?
It is useful when you need a tight 90° turn and a diameter change from 51 mm to 63 mm in one coupler, while keeping the joint stable under heat and pressure load.
Technical specs
- Brand: TurboWorks
- Type: 90 degree silicone reducer hose
- Colour: Blue
- D1: 51 mm
- D2: 63 mm
- Length (L): 100 mm
- Angle: 90°
- Construction: 4-ply
- Wall thickness: 6 mm
- Tested pressure: Up to 7 bar
- Temperature range: -50 to +260 °C
- Applications: Intake; cooling; intercooler
- Part number: CN-SL-100
Selection & installation tips
- Diameter direction: Confirm the 51 mm end (D1) and the 63 mm end (D2) are matched to the correct pipes, and clamp ranges fit both sides.
- Packaging: Check that the 100 mm length and the 90° bend clear nearby parts without kinking or tension.
- Clamping: Use correctly sized clamps and tighten evenly to avoid cutting the silicone and to prevent leaks.
- Routing protection: Keep clearance from sharp edges and hot spots, adding abrasion protection where contact risk exists.
- System check: After installation, inspect joints under load and confirm the coupler does not creep or rotate in boosted/coolant systems.
Before fitting, verify 51/63 mm connection sizes, 90° bend orientation, and clamp range, then match them to the dimensions and specs listed above.
