Key Features & Benefits – thermostatic oil cooler adapter with AN10 ports

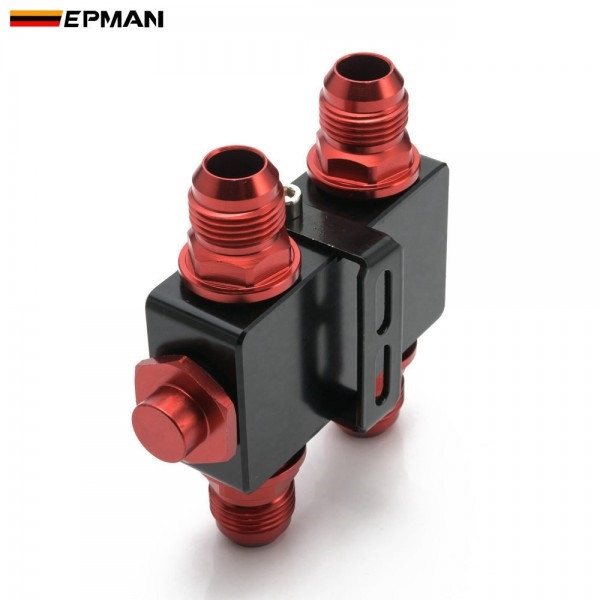

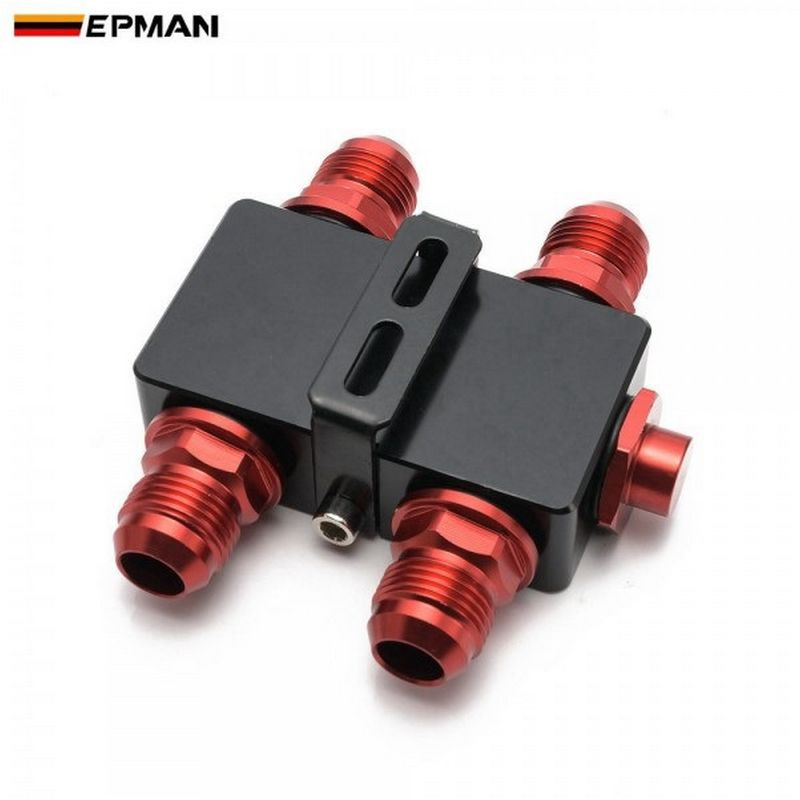

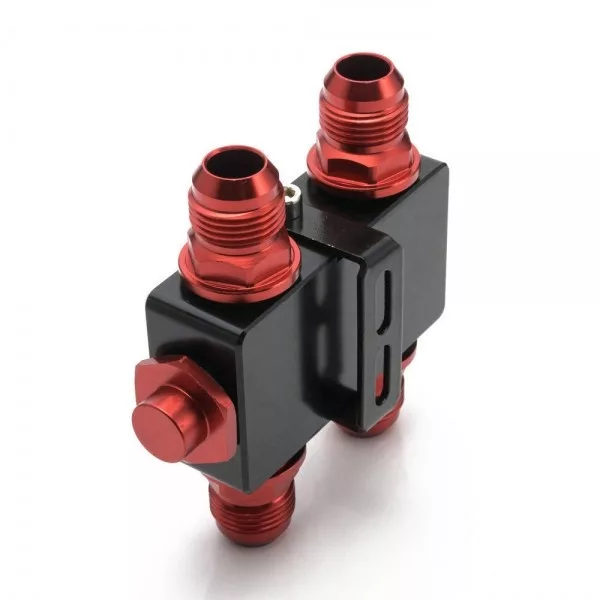

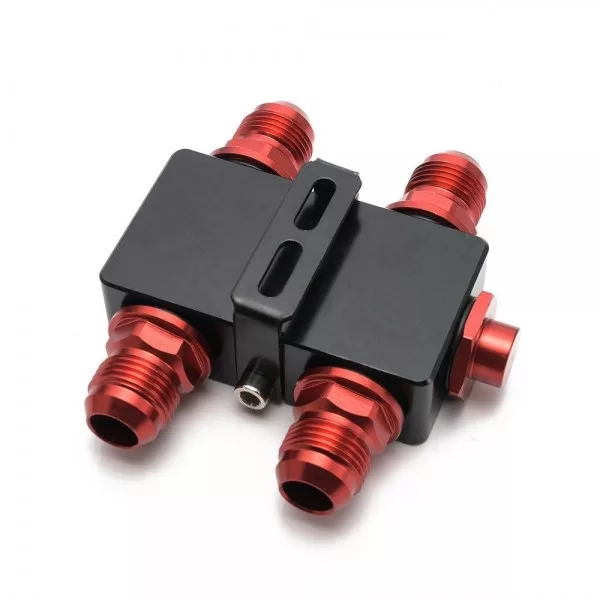

The thermostatic oil cooler adapter with AN10 ports is a sandwich-style adapter intended to sit between the engine and oil filter, using an in-line oil thermostat to support controlled oil cooler routing. With 4 × AN10 connections, it is suited to AN10 hose and fittings for a clean oil cooler loop layout.
It uses an aluminum body, and the AN10 connections include seals aimed at leak-free operation. The listed dimensions help you plan clearance and hose routing, especially in tighter engine bays.
When is this useful?
It’s useful when you want to integrate an oil cooler circuit through a thermostatic adapter while keeping the plumbing consistent with AN10 fittings and predictable packaging around the filter area.
Technical specs
- Part number: EPOL0520
- Product type: thermostatic oil cooler adapter
- Ports: 4 × AN10
- Material: aluminum
- Color: as shown
- Size: 3.92" × 2.03" × 1.47" (99.6 × 51.6 × 37.3 mm)
- Overall with fittings: 1.47" × 4.41" × 1.47" (37.3 × 112.0 × 37.3 mm)
- Included: seals for the AN10 fittings
Selection & installation tips
- Sealing surfaces: Check the mating faces at the filter pad and adapter so the gasket can seal evenly.
- Clearance planning: Confirm space for the 3.92" × 2.03" × 1.47" body and the overall dimensions once fittings and hoses are attached.
- Hose routing: Keep AN10 hoses within a safe bend radius and away from sharp edges or heat sources.
- Seal check: Inspect the seals during assembly and re-check all joints for leaks after the first run.
- Service access: Mount it so the oil filter and AN10 connections remain accessible for maintenance.
Before installation, verify available space, AN10 hose routing, and sealing condition, then match your layout to the dimensions listed above so the adapter fits your specific setup.
