Key Features & Benefits – EPMAN Universal Front Mount Intercooler (550×230×65 mm, 63 mm)

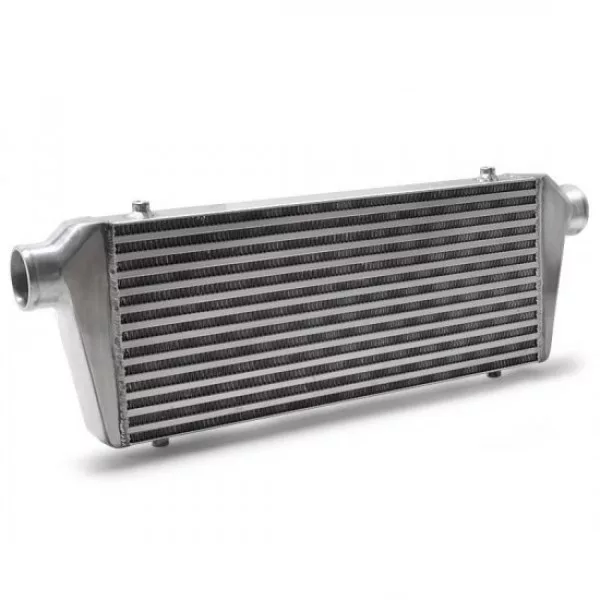

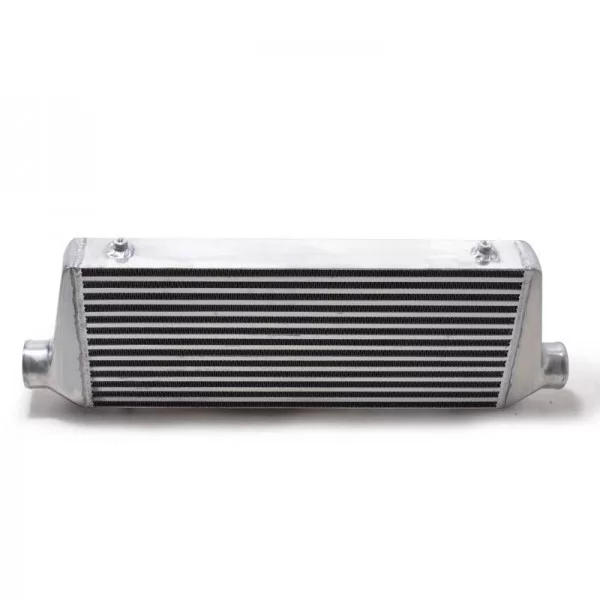

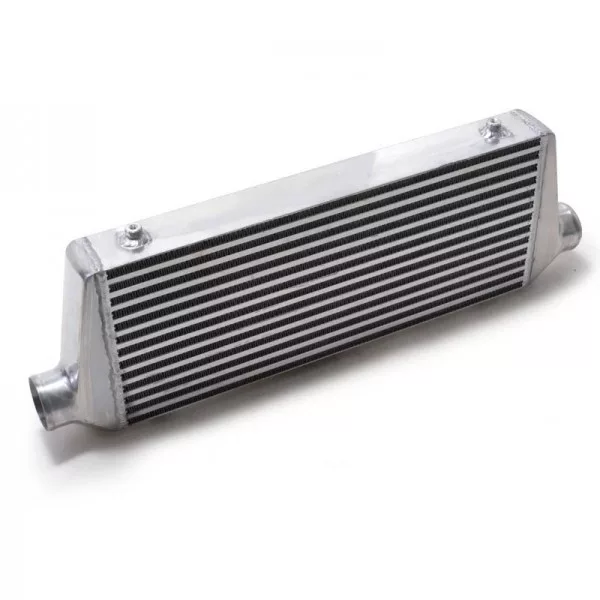

The EPMAN Universal Front Mount Intercooler (550×230×65 mm, 63 mm) is a bar & plate air-to-air intercooler commonly used in custom turbo setups where mounting and charge piping are fabricated to suit the vehicle.
With 63 mm (2.5") inlet/outlet and the listed core size, it’s a practical starting point for builds that need a front-mounted cooler and consistent airflow through the core.
When is this useful?
It’s useful when you want to reduce charge-air temperature in a turbo system, helping the setup stay more consistent under load with proper ducting, piping, and mounting.
Technical specs
- Design: Bar & Plate

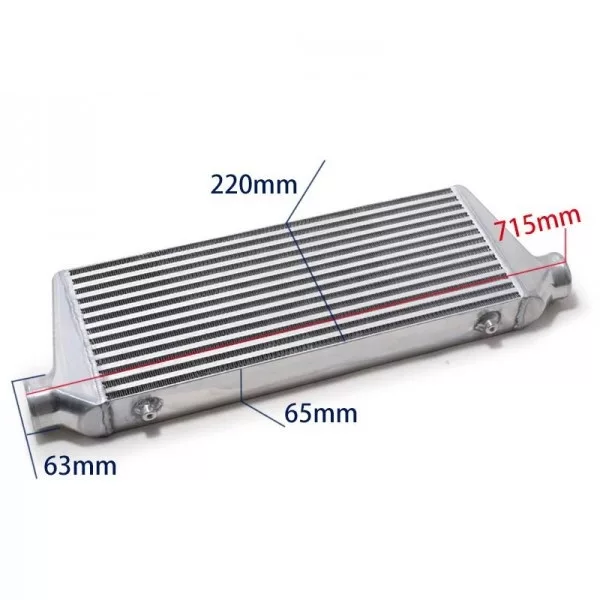

- Core size: 550 × 230 × 65 mm
- Inlet/Outlet: Φ63 mm (2.5")
- Mounting hole thread: M8 × 1.25
- In the box: 1× intercooler (as pictured)
Identifier (P/N): TK-INT0012
Selection & installation tips
- Measure available space carefully: allow room not only for the 550×230×65 mm core, but also end tanks and inlet/outlet routing.
- Confirm your charge piping matches 63 mm (2.5") connections, or plan proper reducers/expanders if needed.
- Mount the intercooler so it isn’t carried by the pipes; keep safe clearance to bumper supports, radiators, and body panels.
- Prioritize airflow: avoid blocking the core and make sure hot air can exit the area behind it.
- After installation, pressure-test the charge system for leaks (couplers, clamps, fabricated joints).
Before ordering, measure your mounting points and the key installation dimensions (for example hole spacing), then compare them to the product details to ensure correct fitment.
