Key Features & Benefits – BMW E46 front shock tower reinforcement plates

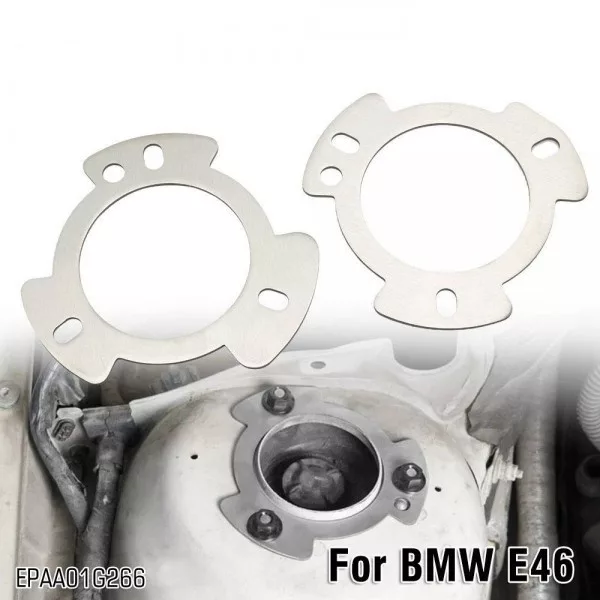

The BMW E46 front shock tower reinforcement plates are made to reinforce the area around the upper front suspension mounting point. This design is intended for 2002–2006 BMW E46 models and does not fit 1999–2001 E46 cars.
The plates are made from 2.5 mm stainless steel with a CNC-machined shape. A polished and brushed finish keeps the part clean-looking while adding extra support surface at the top of the tower.
When is this useful?
This is a sensible option when you want added support around the upper front shock tower area during suspension refresh work, preventive reinforcement, or related top-mount service.
Technical specs
- Type: front shock tower reinforcement plates
- Material: stainless steel

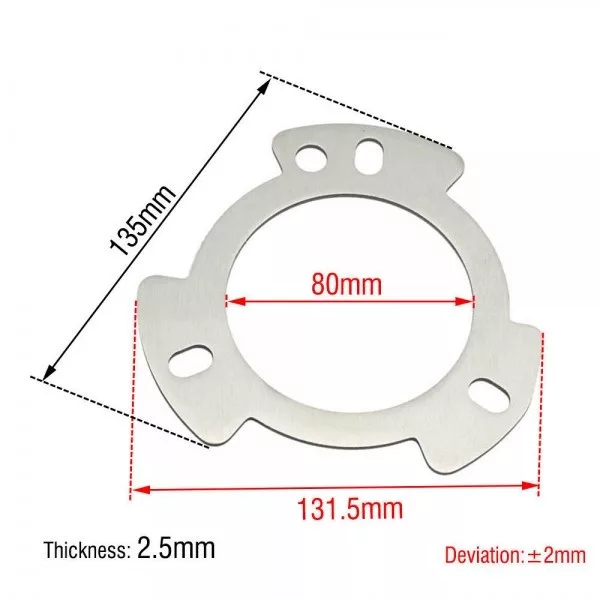

- Thickness: 2.5 mm
- Manufacturing: CNC-machined design
- Finish: polished and brushed

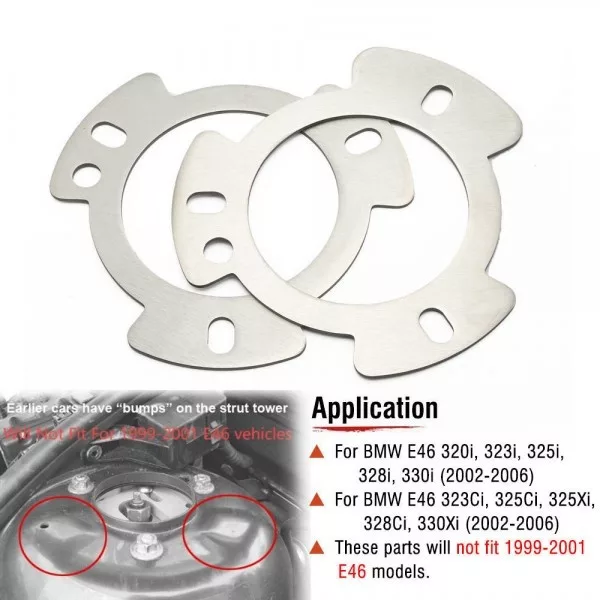

- Compatibility: BMW E46 320i, 323i, 325i, 328i, 330i, plus 323Ci, 325Ci, 325Xi, 328Ci, 330Xi, 2002–2006
Selection & installation tips
- Model year: confirm the car is a 2002–2006 E46, as this design does not fit 1999–2001 models.
- Model code: match the exact 320i, 323i, 325i, 328i, 330i, 323Ci, 325Ci, 325Xi, 328Ci, or 330Xi designation before ordering.
- Bolt pattern: compare the upper tower hole layout with the existing part and the plate shape.
- Contact surface: check that the top of the tower provides a clean, flat seating area for the plate.
- Installation space: make sure there is enough clearance around nearby nuts, studs, and suspension hardware for proper fitment.
Before installation, self-check the model year, exact E46 variant, upper tower bolt pattern, and seating surface, then compare them with the listed details and the existing part.
