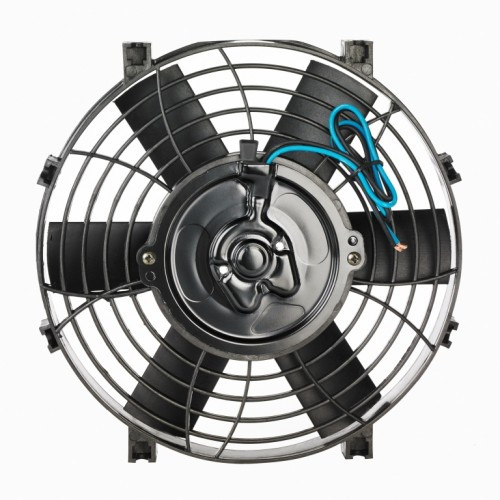

The Davies Craig 9-inch (23 cm) Thermatic® Cooling Fan (12V) is a compact, reliable fan designed for efficient cooling of radiators, air conditioner condensers, and oil coolers.
This versatile fan can operate in both pusher and puller configurations by reversing the blade and polarity. Its small size and efficient airflow make it an excellent choice for smaller engines and systems.
Key Features:
- Airflow: Up to 591 CFM (1004 m³/hr) for effective cooling.
- Bi-Directional Airflow: Usable in both pusher and puller configurations.
- Energy Efficiency: Reduces fuel consumption while enhancing engine performance.
- Compact Design: Depth of only 55 mm, perfect for tight spaces.
- Motor Options: Available with brushed or long-life brushless motor.
Specifications:
- Airflow: 591 CFM (1004 m³/hr)
- Maximum Current Draw: 6.5A (12V)

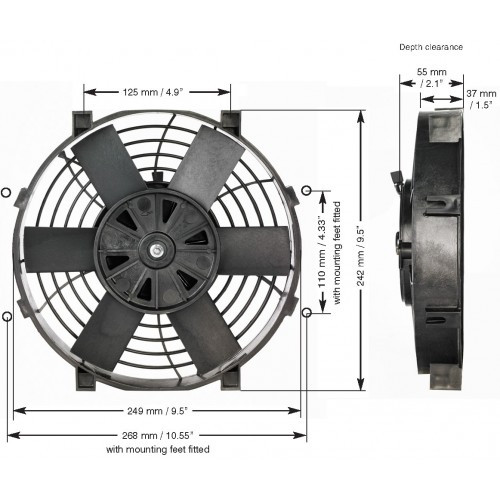

- Dimensions:
- Height: 242 mm
- Width: 250 mm
- Depth: 55 mm
- Weight: 0.93 kg
- Operating Voltage: 12V DC

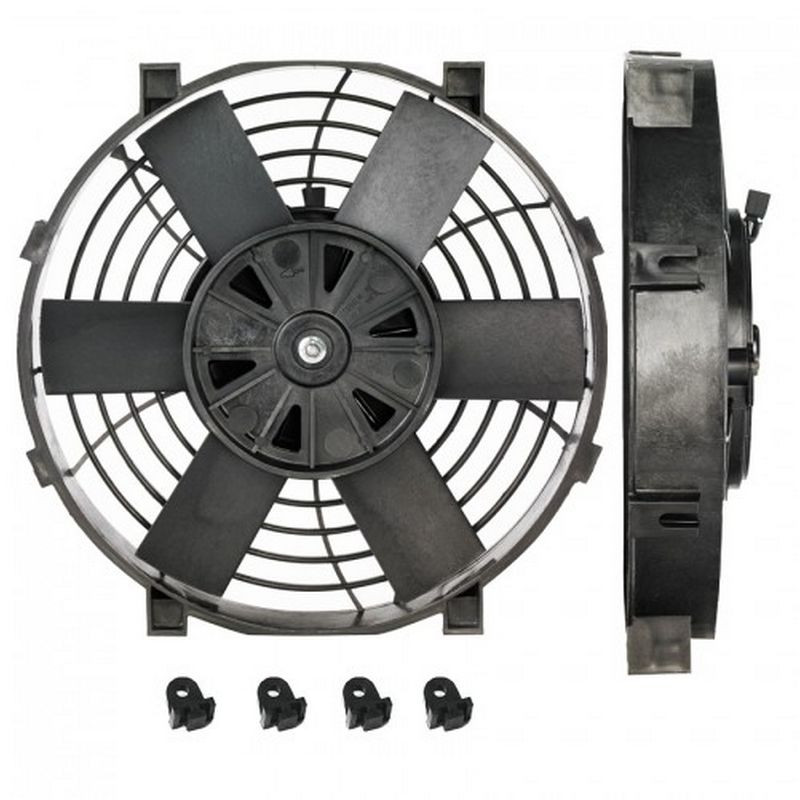

Kit Contents:
- 9-inch Thermatic® Fan (12V)
- Motor, fan blade, shroud, and mounting feet
- Installation guide
Optional Accessories:
- Universal Fan Fitting Kit (#0579 or #0578)
- Thermatic® Fan Switches (available in mechanical and digital versions)
Applications:
- Radiator cooling fan
- Air conditioner condenser fan
- Oil cooler fan
