Athena Head Gaskets: MLS & Cut Ring Technology for High-Performance Engines

Introduction

The head gasket is one of the most critical components in any high-performance engine. It ensures separation of combustion pressure, coolant, and oil while withstanding extreme heat and pressure. For turbocharged, supercharged, or high-compression builds, an OEM gasket simply won’t cut it. Athena, a trusted Italian manufacturer, offers two advanced solutions: the MLS (Multi Layer Steel) and Cut Ring head gaskets, both developed and tested under motorsport conditions, yet available for street builds.

Technical Overview

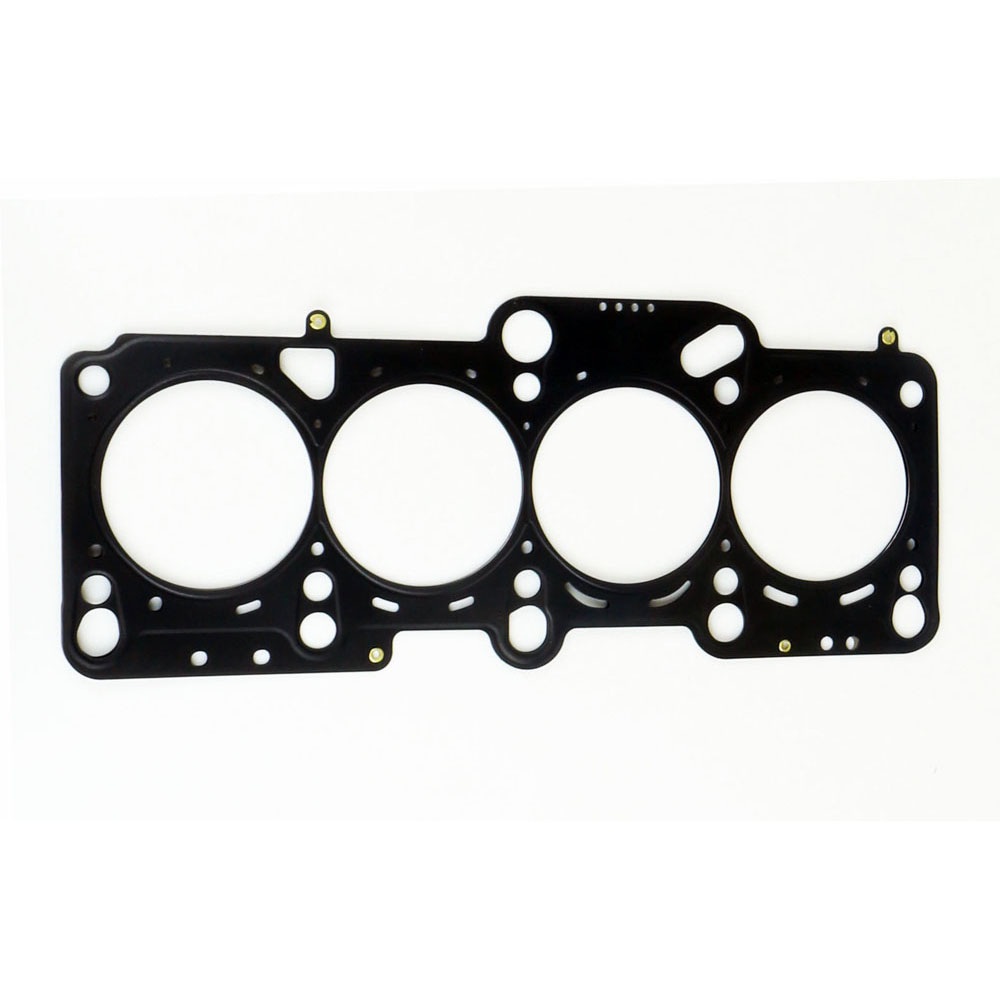

MLS (Multi Layer Steel) Head Gaskets

MLS gaskets consist of multiple nitrided steel layers with an elastomer coating for a precise and adaptive seal between the cylinder head and engine block.

Key Benefits:

• High heat resistance – tolerates up to 300°C operating temperature
• Strong pressure resistance – reliable under 1–2 bar boost
• Reusable if undamaged
• Easy to install with properly machined flat surfaces

Applications: BMW N54, B58, M54 – VW/Audi 1.8T, EA888 – Toyota 2JZ, 1JZ – Subaru EJ20, EJ25

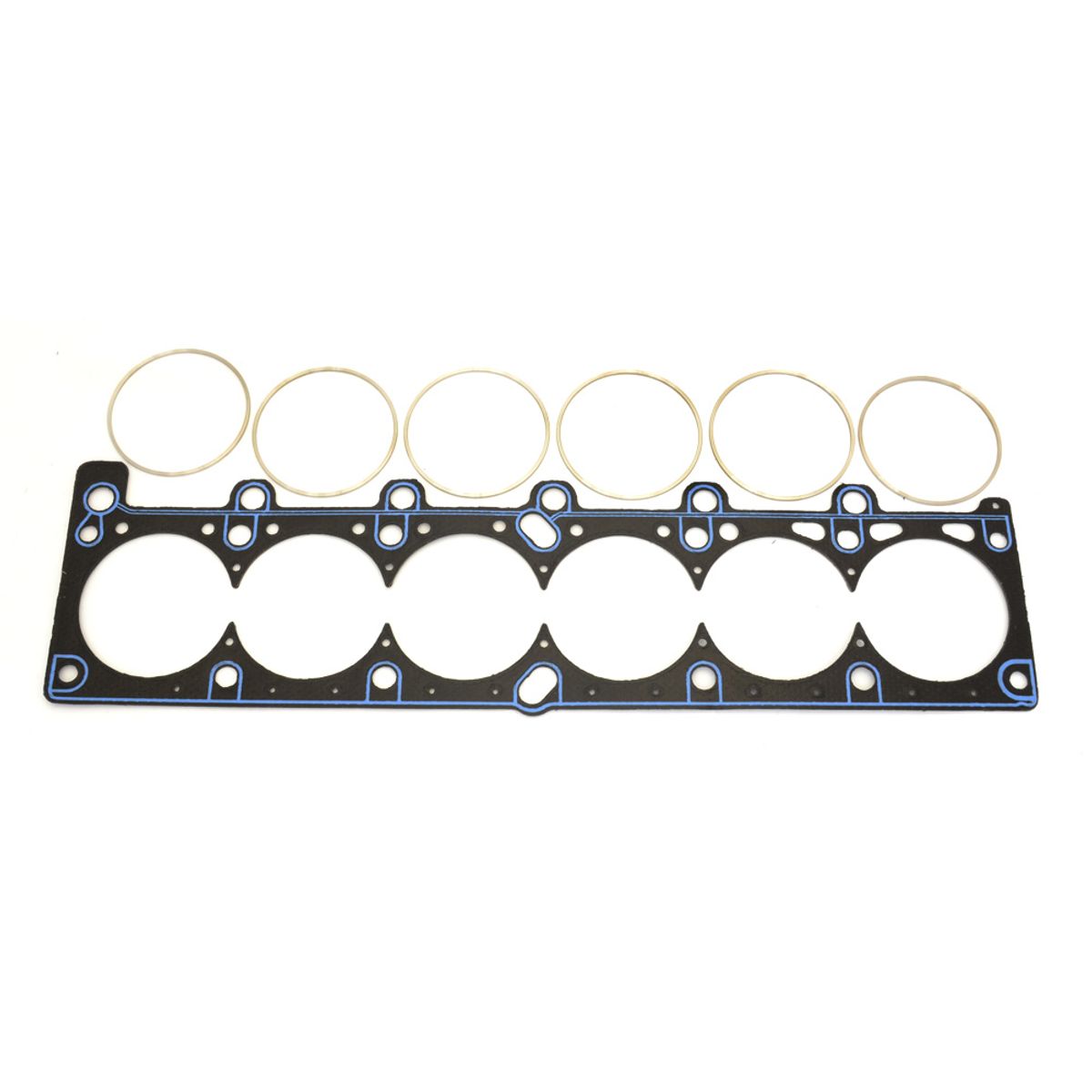

Cut Ring Head Gaskets

The Cut Ring design uses individual steel rings that bite into the cylinder head, creating an ultra-tight seal around the combustion chamber – ideal for high-boost and extreme-use applications.

Key Benefits:

• Unmatched combustion sealing – handles over 2 bar boost with ease
• No burn-through or micro leaks
• Proven in motorsports – used in drag, drift, rally setups

Requirements: Decked surfaces are mandatory, accurate torque procedure essential, single-use only

Application Scenarios

Street tuning (1–1.5 bar boost): The MLS gasket is optimal for reliability and reusability. Cut Ring can be used but is only recommended for advanced builders.

Track and race engines (2+ bar): For high boost and temperature conditions, Cut Ring is the superior solution. MLS can still perform, but surface prep and torque control must be flawless.

Drag / Drift / Rally: Cut Ring is the go-to choice – especially where combustion sealing must be perfect every time.

Common Mistakes to Avoid

• Skipping surface decking – both gasket types require perfectly flat mating surfaces
• Using OEM head bolts – not enough clamping force for tuned engines
• No retorque on cold engine – especially critical for Cut Ring systems
• Incorrect torque sequence – compromises sealing integrity

Who Should Use Athena Gaskets?

• Tuners building 300–700+ HP engines
• Race teams looking for zero-compromise sealing under extreme load
• Engine builders who need a permanent fix for head sealing in boosted or high-compression motors

Related Product Categories on LLRacing.eu

• Athena MLS Head Gaskets – BMW, VW, Ford, Toyota, Subaru
• Athena Cut Ring Kits – 1JZ, 2JZ, M54, EJ25
• ARP Head Stud Kits – essential for tuning applications
• ReinzPro Head Bolt Sets – alternative high-strength solution

FAQ – Frequently Asked Questions

Q: Can I reuse an MLS gasket?
A: Yes, if it is removed carefully and shows no deformation or damage.

Q: Can Cut Ring be used on OEM heads?
A: Yes, provided the head is flat and hard enough to allow the ring to seat properly.

Q: What makes Athena gaskets different?
A: Made in Europe, developed for motorsport, and proven in competition – these are race-grade sealing solutions.
