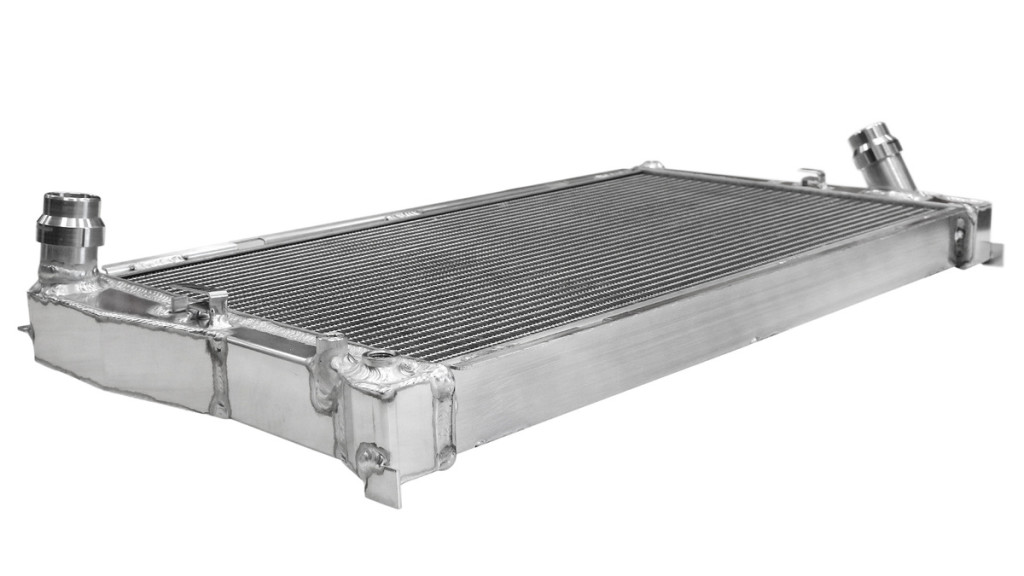

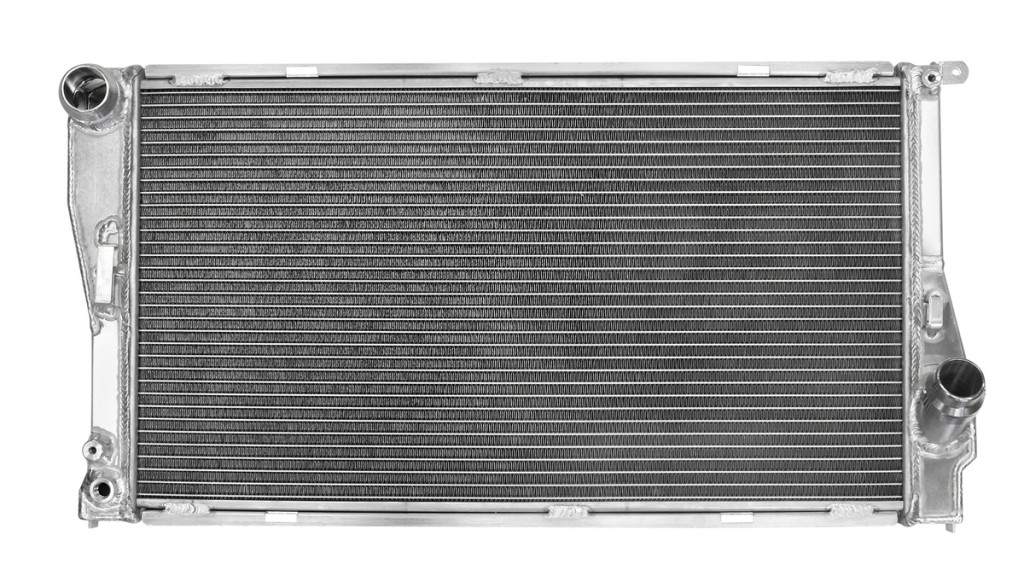

Key Features & Benefits – TurboWorks racing radiator BMW E90/E92/E93 335i 40mm
The TurboWorks racing radiator BMW E90/E92/E93 335i 40mm is designed for builds where the cooling system sees higher heat load. Fitment: BMW E90/E92/E93 335i (2006–2013), BMW 1M, BMW 135i, BMW E82/E88 (2007–2012) and BMW Z4.
It features a 40 mm thick core, supporting increased thermal capacity in a similar packaging area when compared against thinner OEM-style cores. Because multiple OEM radiator variants can exist within the same chassis, confirm mounts and hose connections before final assembly.
When is this useful?
This is useful when stable coolant temperatures under sustained load matter and a 40 mm core radiator matches your car’s mounting points, hose layout, and available space.
Technical specs
- Type: engine water radiator
- Core thickness: 40 mm
- Fitment: BMW E90/E92/E93 335i (2006–2013), BMW 1M, BMW 135i, BMW E82/E88 (2007–2012), BMW Z4
- Brand: TurboWorks
Selection & installation tips

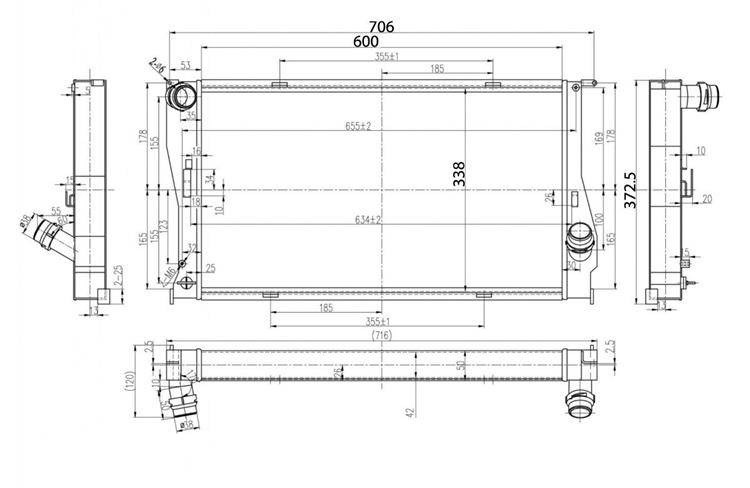

- Dimension check: compare overall radiator size and available space, especially with the thicker core.
- Hose connections: verify inlet/outlet position and diameter so your OEM hoses or planned piping will fit.
- Mounting points: confirm bracket locations and isolators so the radiator sits without stress or contact.
- Fan & shroud clearance: check clearance to fan(s), shroud, and nearby components through full movement.
- Bleeding: bleed the cooling system after installation and re-check for leaks at operating temperature.
Before installation, verify model year, mounting points, hose connection layout, and available space, then compare those requirements to the fitment list and the 40 mm core thickness above.
